Раритетные карбоновые рамы : Alan и Vitus

Теперь у меня есть две раритетные карбоновые рамы :  Alan и Vitus.

Unlike today's carbon and aluminum (Al) frames, the ones made by Vitus (France) and Alan (Italy) were simply an extension of the traditional lugged steel frame. In the case of Vitus they were bonded to Al lugs while Alan bonded and screwed their tubes into their Al lugs. Guerciotti also marketed an Alan Al frame and still does so today in its cyclocross version. The early Vitus and Alan frames were light and particularly smooth riders.

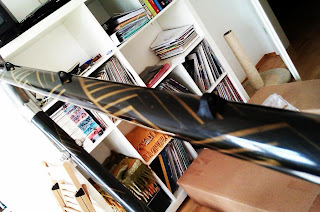

Карбоновые трубы, вклеенные в алюминиевые муфты...

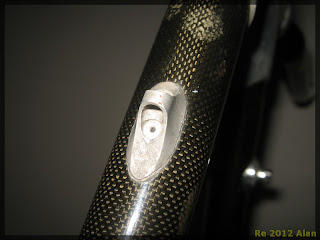

Alan Carbon
Padova, Italy. Super Light carbon frame from the pioniers of bonded Aluminium frames. 1" forks. Excellent condition.
seat tube c-t
seat tube c-c
top tube c-c
chain stay
seat post

57 cm
55,5 cm
54,5 cm
40 cm
25 mm
Bottom Bracket: Italian: 36mm x 24
580 gr
1460 gr

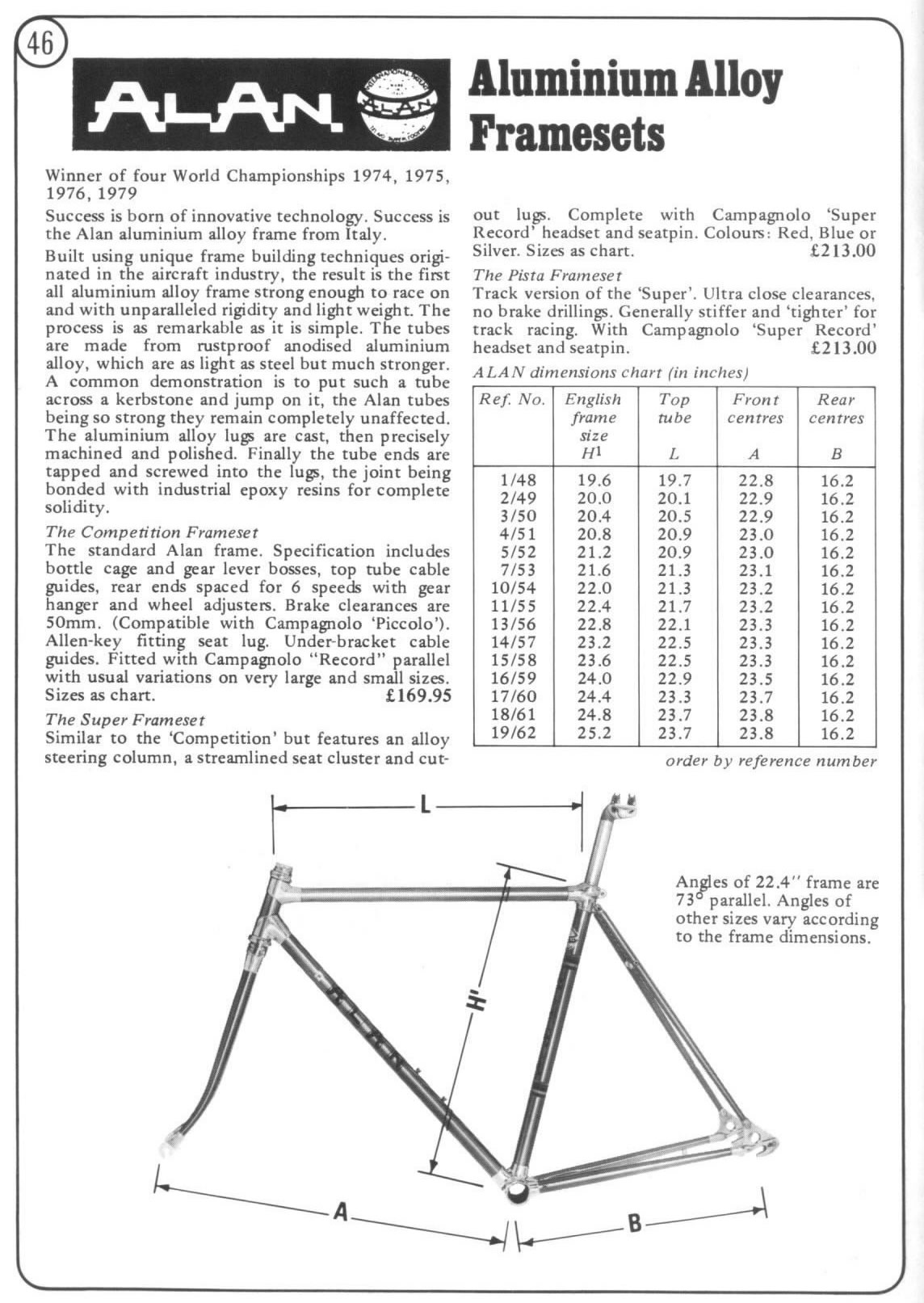

Some Alan


Hi Thomas,
the frame you have got seems one of the first Alan Super from the 70's. We don't have any record for that serial number because is too old. Maybe it was made on 1974/1975. For that there's no cable guides. I think , in that period, the cables were fixed by some bands only.
The correct decals for that frame should be the black ones.
I remain at your disposal for more infor.
Alberto Falconi / Alan bikes


seat tube c-t
seat tube c-c
top tube c-c
chain stay
seat post
weight (complete)
48,5 cm
47 cm
51 cm
40 cm
25.4 mm

2530 gr

Frame: Alan Competizione 1980/1981 57x57cm

Fork: Alan round blades

Headset: Campagnolo 1" threaded
Stem: 3TTT
Handlebar: 3TTT
Bar Tape: Deda

Brake Levers/Brifters: Campagnolo C- record
Brake Calipers: Shimano 105 single pivot nutted
Brake Pads: Shimano
Brake Cables: Transfil

Shifters: Campagnolo downtube friction shifters.
Front Derailleur: Super record mid 80's
Rear Derailleur: Triomphe
Derailleur Cables: Transfil
Cassette: 13-18T 6 speed freewheel
Chain: KMC Z82
Cranks: Nuovo record/record/super record fluted 1049/A
Chainrings: Super record 52/44T 144BCD
Bottom Bracket: Campagnolo cup and cone
Pedals: Shimano

Rims: Super competition Champion tubualr exact odel unknown
Hubs: Campagnolo Record age unknown
Hub Skewers: Campagnolo
Nipples: ?
Spokes: 2.0/1.7/2.0mm
Tyres: Front Hutchinson 700x22c tub rear Conti Giro 700x22c tub
Tubes: None

Saddle: Sella Italia turbo
Seatpost: 25.0mm Kalin
Seatpost Binder: Allen bolt

Еще Alan


Вот инструкция и наглядное пособие по сборке:

Here's the component list so far.

Derailleurs: Mavic SSC 851 group RD and matching FD. I would have gone with Mavic's later indexed Mavic RDs, but just can't swing the cost to find and buy those. I can always change the derailleurs later, but they did still use the 851s on many bikes in 1986 when the bike was made.
Shifters: Mavic/Simplex Retrofriction.
Chain: Sedis/Sachs MC90 narrow with black and silver links.
Crankset: Edco Competition 170mm x 144BCD, 52 x 42 tooth rings.
Freewheel: Regina CX, 7 speed.
Bottom Bracket: Edco Competition 116mm, sealed bearings with double adjustable aluminum cups.
Seatpost: 25mm dia. Shimano 600 Aero (Came with frame).
Saddle: Selle San Marco Concor Supercorsa.
Brakes: Weinmann Delta with Aero levers.
Headset: Miche Primato with needle bearings. I thought of using my Stronglight Deltas, but the steerer tube is a bit short for the Deta's stack height.
Pedals: Look Keo Classic.
Waterbottle cage: Blackburn aluminum race cage.
Stem: Early 90's (can't remember what model) Italmanubri with clamshell type clamp (for 25.4mm diameter bar?, that was a suprise for me!?), Silver and black anodized.
Handlebar: Italmanubri model Europa Super Racing, black anodized, previously from my PSV, bought back in the 80's. (25.4mm dia, see stem).
Wheels: Custom tubular wheelsset built by Kevin King(?) 1987 with Hoshi bladed spokes in radial pattern up front and 2x at drive side and radial on non-drive side at rear, Capmgnolo Record hubs and unknown 32H semi aero profile rims.
Tires: Schwalbe Milano tubs.

А это из описания Alan на ebay:

This rare Alan Carbonio is build around the following components:
Stem: 3ttt w/ vintage logo, 90mm
Handlebar: 3ttt "Criterium", 42 cm, with old engraved logo, fresh black bar tape, chromed end plugs
Saddle: Selle Italia Turbo Matic 2, was NOS but bike once fell on it (and that caused a small mark on left side)
Bottom Bracket: Shimano 600 Ultegra
Headset: Shimano 600 Ultegra
Seatpost: Shimano 600AX (almost identical to a Dura Ace item)
Crankset: Shimano Dura Ace
Chainrings: Shimano Dura Ace, outer: 53 / inner: 39
Pedals: Shimano Dura Ace, new yellow "Christophe" Nylon straps
Rear derailleur: Shimano Dura Ace 7402
Front deraillieur: Shimano Dura Ace 7402, NOS !
Shifters: Shimano Dura Ace 7402, 7-speed
Brakes: Shimano Dura Ace 7400
Brake levers: Shimano Dura Ace 7400 with new black hoods
Hubs: Shimano 600, 36 hole, with matching skewers
Rims: Mavic MA40 clincher type (new yellow &green logo), period correct Michelin tyres in very good condition

Оказывается Koga Miyata тоже делала lugged carbon:


Another Grail bike build. 1986 Alan Carbonio! Finally! - Page 2
